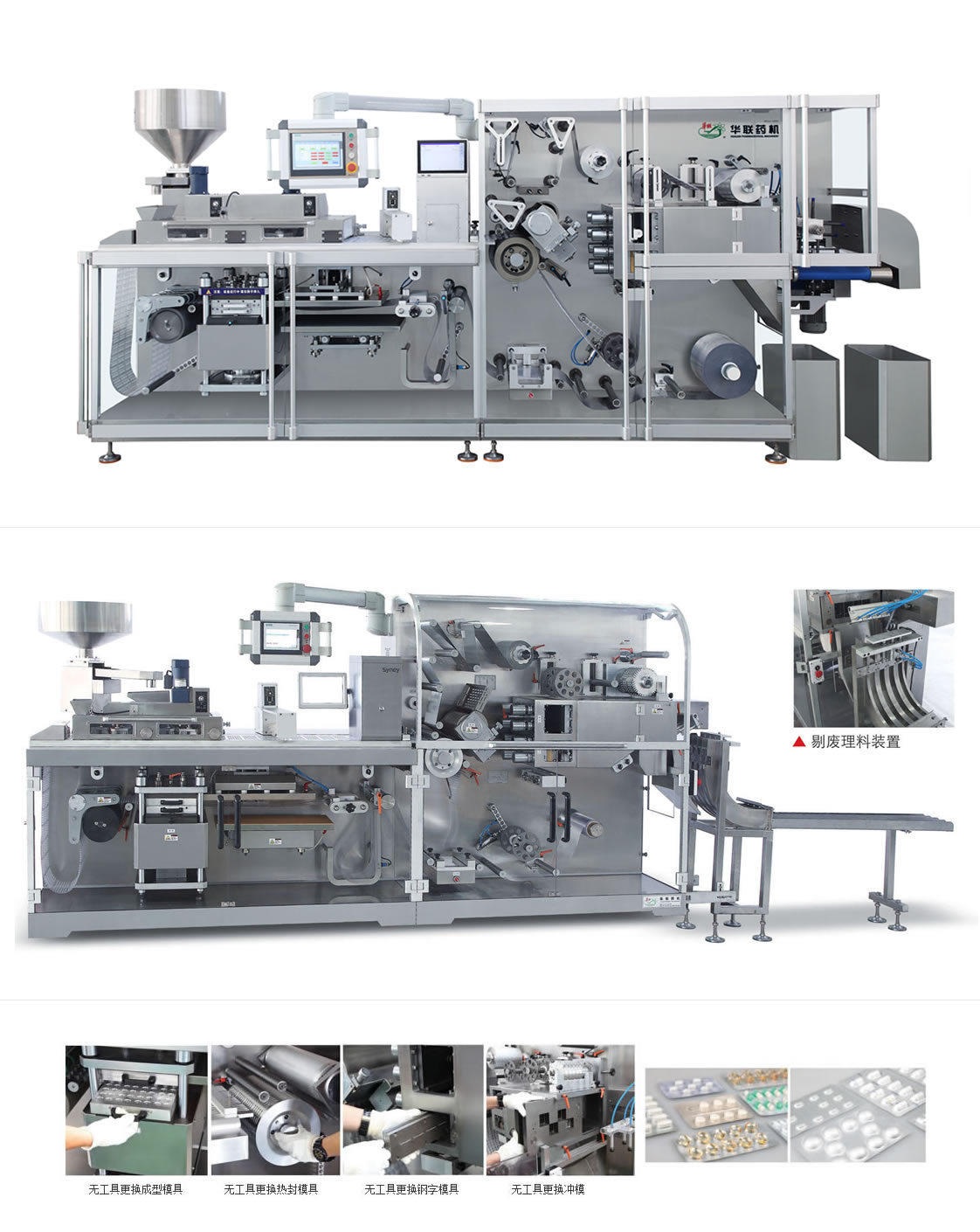

DPH-270/330/380DHigh-speed Blister Packing Machine

High-speed Blister Packing Machine is suitable for automatic high-speed Aluminum PVC packaging for capsules, tablets and chewing gums, candies. It adopts flat pressure forming to form strong and average blisters, and roller type mesh sealing to ensure reliable sealing. The machine is equipped with batching system, embossing device and horizontal boundless punching to achieve high performance when greatly save packing material.

Technical characters：
Easy mould changing without the use of tools, push-oriented.
It adopts servo traction and offers simple setting, convenient debugging.
Push-oriented punch mould installation. If inspection and reject system is equipped and changed, it won’t be necessary to dismantle suck discs.
The distance between two heating plates of forming is long when machine stops to avoid PVC to be excessively heated and softened.
Optional configurations include camera inspection and rejection device, mechanical hand structure with suck heads, automatic vibrating guide rail feeder, etc. It can be equipped with photocell register device according to requirement of customers.

Main Technical Parameter

model		DPH-270D	DPH-380D
punching frequency		80-180 times/min times/min	80-180 times/min times/min
Maximum molding area		240×260mm	240×370mm
Maximum forming depth		13mm	13mm
Traction stroke		Punch: 20-140mm Forming: 80-250mm
Section Specifications		Reference Specifications Standard: 80×57, 95×65, 103×43 (Customized allowed can be designed according to user requirements)
Packaging Materials	cold aluminum	0.14-0.16×270mm	0.14-0.16×380mm
	Standard PVC Rigid Sheet	0.15-0.5×270mm	0.15-0.5×380mm
	Standard PTP aluminum foil	0.02-0.035×270mm	0.02-0.035×380mm
	The diameter of the reel is	70-76mm	70-76mm
Air consumption		≥30 m3/h (self-provided) Pressure: 0.6-0.8Mpa
mold cooling		Tap water or recycle water 60L/h
total power		About 28KW	About 28KW
main motor		2.2KW	3.0KW
Dimensions		4050×980×1750mm	4050×1030×1750mm
Total Weight		3000Kg	3500Kg
