ZHJ-200/260/400Automatic High Speed Cartoning Machine

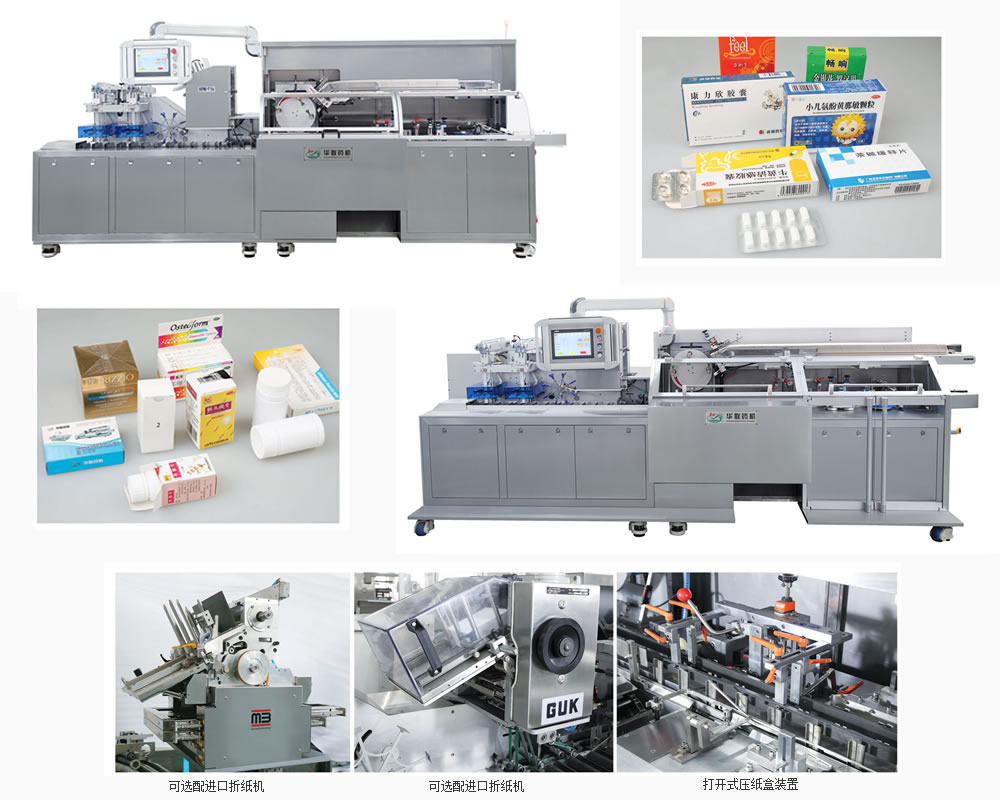

Automatic High Speed Cartoning Machine is intelligent, continuous automatic cartoning equipment, suitable for packing blisters, tubes, ampoules and other related objects into boxes. The highest speed can reach up to 370 cartons/min. It has advantages of high packing efficiency and good quality, and is hi-tech Product with structure of mechanical-electrical integration. This machine can fold leaflets, open cartons, insert blisters into cartons, emboss batch number and then close or seal automatically. It adopts frequency invertor to adjust speed, human machine interface to operate, PLC to control, and photoelectric detector to supervise and control each station so that once there is anything wrong with the machine, it will stop and display the troubles automatically so as to solve them in time. This machine can be used separately, or be linked with other machine to form a Production line. Note: this machine can also equip hot melt glue device to do hot melt glue sealing for box.

Main Technical Parameters:

model ZHJ-200 ZHJ-260 ZHJ-400
Production capacity (boxes/minute) ≤200 ≤260 ≤400
Maximum carton size (mm) 170×87×55

170×87×55

170×87×55

Minimum carton size (mm) 65×28×15

65×28×15

65×28×15

carton quality 250-300/m2 250-300/m2 250-300/m2
Maximum manual size (length × width) 320×180 320×180 320×180
Minimum manual size (length × width) 100×100 110×100 90×100
Manual quality 70/m2 70/m2 70/m2
Air consumption ≥2m3/h ≥2m3/h ≥2m3/h
total power 4.5kw 4.5kw 4.5kw
power supply 380V 50HZ 380V 50HZ 380V 50HZ
Dimensions 4400×1500×1800 4400×1500×1800 4400×1500×1800
Weight (kg) 3500 3500 3500
