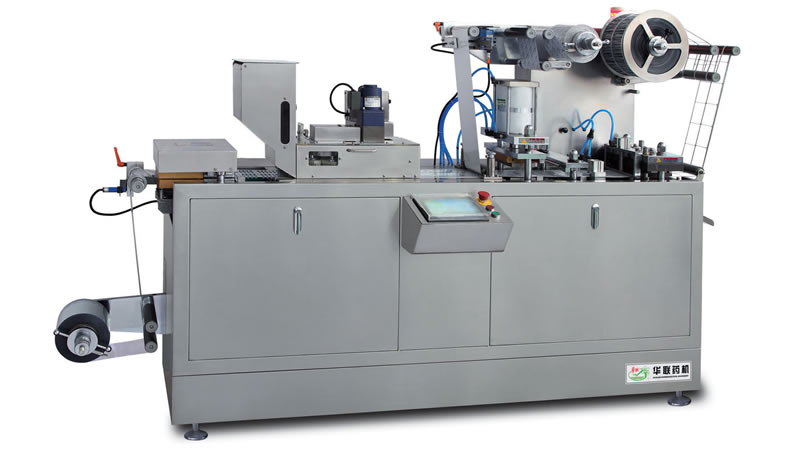

DPB-100/140Flat-plate Automatic Blister packing Machine
Flat-plate Automatic Blister packing Machine is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy ops ration, multi function, stroke adjustable, It is suiable for the ALU-PVC. package of Medicine, food, electric parts etc．
Patent NO.:
ZL.95225104.3 ZL.99200565.5 ZL.99226039.6 ZL.94246731.0 ZL.96245166.5 ZL.97214863.9 ZL.99113550.4
Main technical parameters
| Model | Type 100 | Type 140 |
| Number of punches (times/min) | 8-35 times/min Times/min | 10-40 times/minute Times/min |
| Production capacity (version/hour) | 2100 version/hour Blister/h(Standard80×57mm) | 4200 version/hour Blister/h(Standard80×57mm) |
| Maximum molding area and depth (mm) | Standard 80*110*20mm |
Standard 130*110*20mm |
| Standard travel range (mm) | 20-70mm | 20-120mm |
| Standard Section (mm) | 80×57mm, 80×35mm, 95×65mm, 105×42mm, 105×55mm(can be designed according to user requirements) | |
| Compressed Air | 12 cubic meters per hour (self-provided) pressure: 0.6-0.8Mpa | 12 cubic per hour (bring your own) Pressure: 0.6-0.8Mpa |
| Total power of the power supply | 380V/220V 50Hz 3.2kw | 380V/220V 50Hz 8kw |
| Main motor power (tens of millions) | 0.55kw | 0.75kw |
| PVC rigid sheet (mm) | 0.15-0.5×115mm | 0.15-0.5×140mm |
| PTP foil (mm) PTP | 0.02-0.035×115mm | 0.02-0.035×140mm |
| dialysis paper (mm) | 50-100g/m2×115mm | 50-100g/m2×140mm |
| Mold Cooling | Tap water or circulating water 60L/h | |
| Dimension (mm) | 1600×600×1100mm | 2075×440×1353mm |
| Whole weight (kg) | 385kg | 800kg |
